Programmer's guide

Code Samples

Team Remote Debugger ® 2001 - Hands-on samples

Note: Please also review the Programmers Guide and Programmers FAQ

Samples included in Team Remote Debugger package:

1. Simple VB Sample
2. Test Stand - VB Sample
3. MTS/COM+ DLL Sample with Test EXE
4. ASP Sample
5. T-SQL Sample
6. Visual C++ 6.0 sample

Note: More sample code to come - watch this space.

Download all samples here, also note that they are included in the retail package in \Samples folder. You are also welcome to send your particular case and we will help you integrate Team Remote Debugger with your project!

Some of the samples are shown below, they are quite simple and easy to use, just like Team Remote Debugger, yet they are very powerful at the same time:

Visual Basic Sample #1

A simple program with one button that calls one function demonstrates the principle features of Team Remote Debugger.

You may copy/paste the Process_Order subroutine and put it into any MTS component, Activex DLL, EXE wherever they are and whenever you will call the method you will get the result you expect. An MTS sample is also included in the package.

Note: The source code given here uses the Team Remote Debugger components, so to run it you should use this sample included in the Retail package under \Samples folder.

To download only this sample click here.

Public Sub Process_Order(order_id As Integer)
' declaring the Team Remote Debugger Server component C_Debug
Dim odeb As C_Debug

' declaring return value
Dim ret As Variant

'1. Creating the Team Remote Debugger Server component C_Debug always locally
Set odeb = CreateObject("SplineTechDebug.C_Debug")

'2. openning the debug session
ret = odeb.Open_Session("MySession")

'3. waiting for Team Remote Debugger Client to connect to the server
' and open the session for 30 seconds
ret = odeb.Wait_For_Connection(30)

' ...
' ... Doing whatever your code should be doing ...
' ...

'4. Let's say you need to see the value of order_id passed
Call odeb.Writeln("order_id = " & order_id)

' ...

'5. Let's say you need to see the ret value
Call odeb.Writeln("ret = " & ret)

'6. Ask yourself
Call odeb.Writeln("Do you want to proceed with order?")

'7. Pass dialog with "yes" "no" buttons and wait for the answer for 10 seconds
ret = odeb.wait_for_option("yes,no", 10)

'8. Check the dialog answer
If CStr(ret) = "yes" Then
'8-> the answer is "yes"
'9. update the order
Call odeb.Writeln("Order Updated")
Else '^8
'8 -> the answer is not "yes"
'10. do not update the order
Call odeb.Writeln("Order is not updated")
End If '#7

'11. Now you may ask yourself another order_id for 10 seconds
Call odeb.Writeln("Enter new order id")
ret = odeb.Wait_For_Value(order_id, 10)

End Sub '# Process_Order

Private Sub btn_process_order_Click()
Call Process_Order(1001)
End Sub

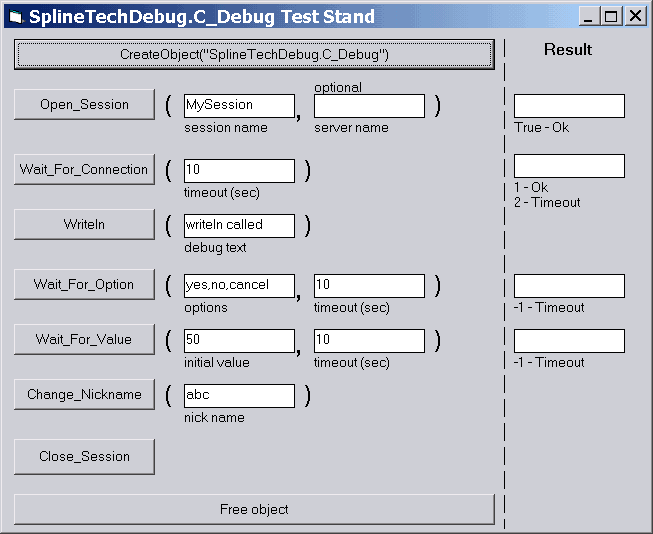

Visual Basic Sample #2: Server Test Stand

The Server Test Stand source code is included in the Team Remote Debugger retail package.
